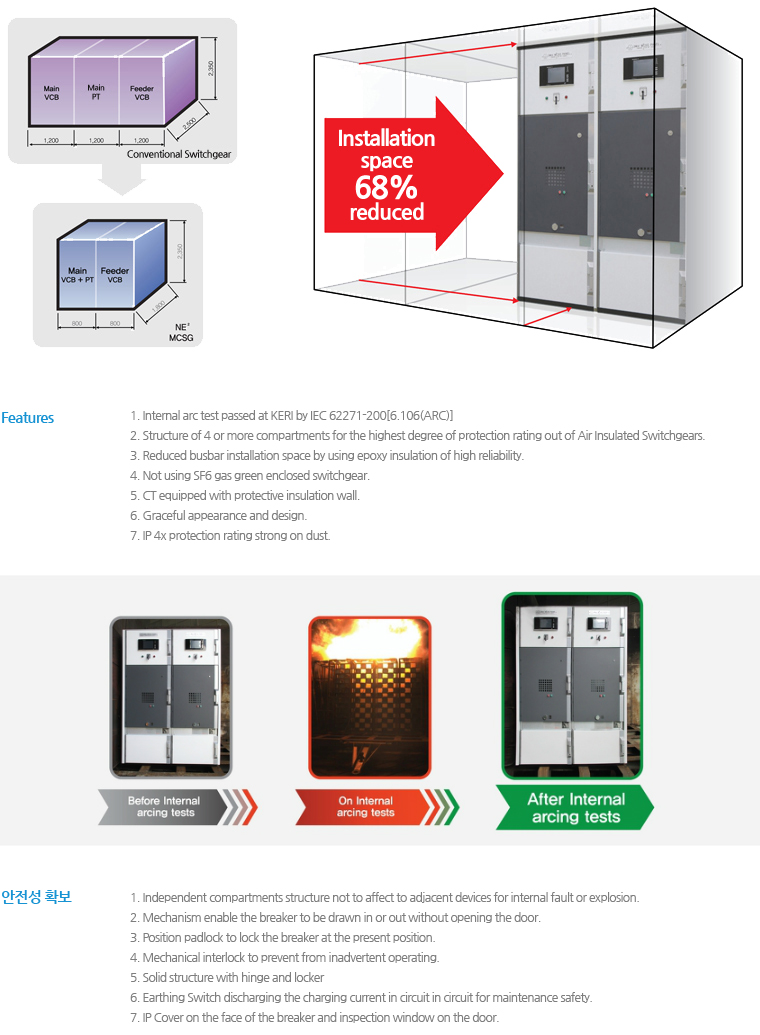

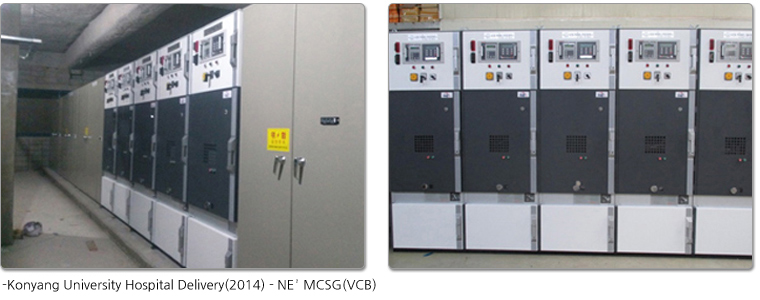

| Section | 7.2kV MCSG | 12kV MCSG | 17.5kV MCSG | 24kV MCSG | ||
|---|---|---|---|---|---|---|
| Model | RE-6M | RE-12M | RE-17M | RE-24M | ||
| Rated voltage(kV) | 7.2 | 12 | 17.5 | 24 | ||
| Rated frequency(Hy) | 50/60 | 50/60 | 50/60 | 50/60 | ||
| Rated power frequency withstand voltage(kV/1min) | 20 | 28 | 38 | 50 | ||
| Rated lighting impulse withstand voltage(kV[1.2x50 ㎲]) | 60 | 75 | 95 | 125 | ||
| Rated short-time withstand current(kA/s) | 25/3 | 25/3 | 25/3 | 12.5/1 | 25/1 | |
| Degree of protection | IP4X | IP4X | IP4X | IP4X | ||
| Internal arc withstand current(kA/s) | 25/1 | 25/1 | 25/1 | 12.5/1 | 25/1 | |
| Rated current(A) | 630/1250/2000 | 630/1250/2000 | 630/1250/2000 | 630/1250 | ||
| Size(mm) | Wide | 600 | 600 | 600 | 800 | |
| high | 2350 | 2350 | 2350 | 2350 | ||
| Depth | 1800 | 1800 | 1800 | 1800 | ||
| Certification | - | - | - | KERI | ||
| VCB Model | Susol | Susol | Susol | Susol | ||
| Standard | IEC 62271-200 | IEC 62271-200 | IEC 62271-200 | IEC 62271-200 | ||
