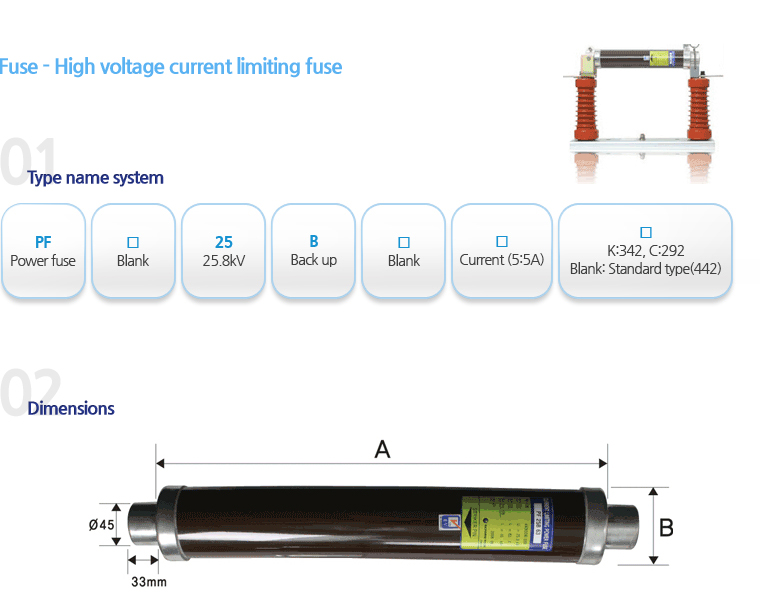

  • High voltage current limiting fuse

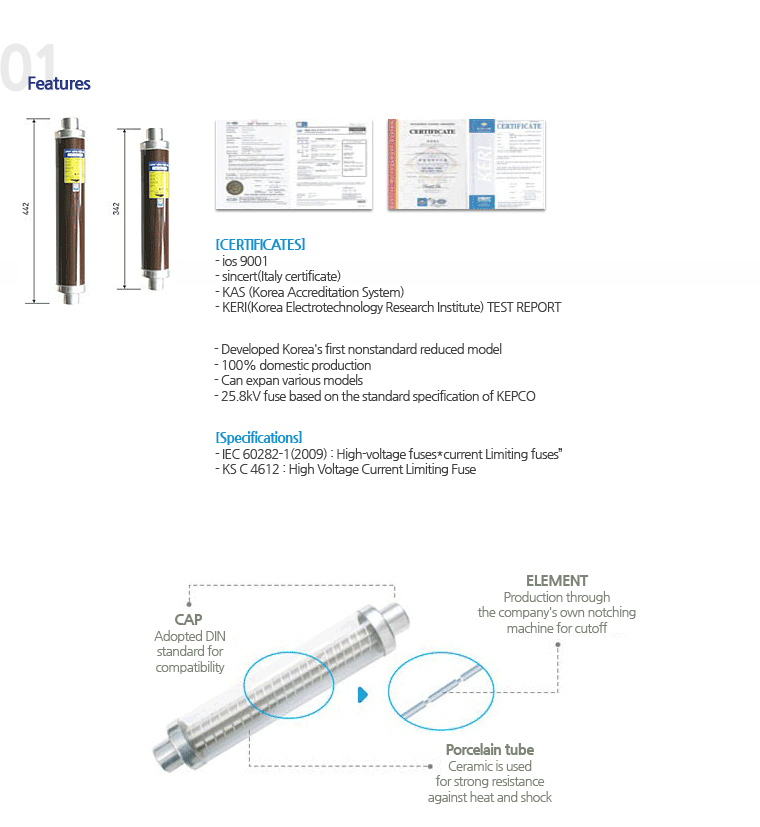

  • Features

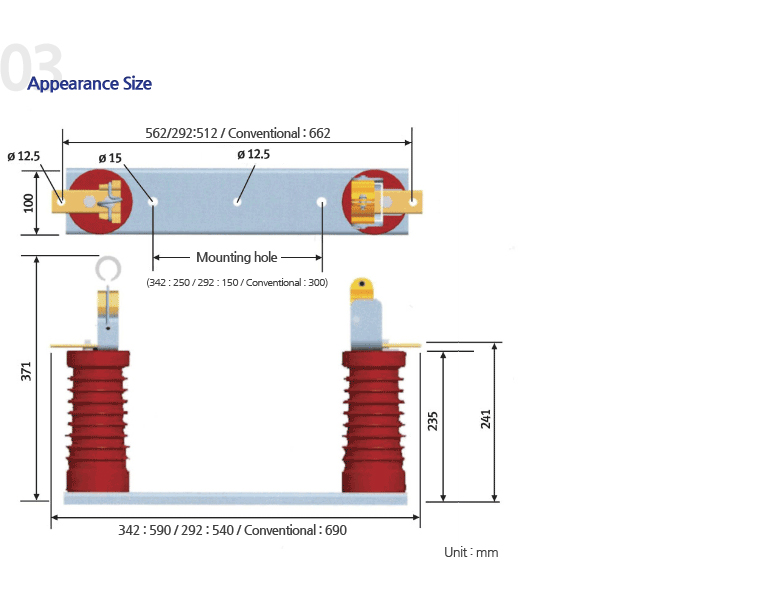

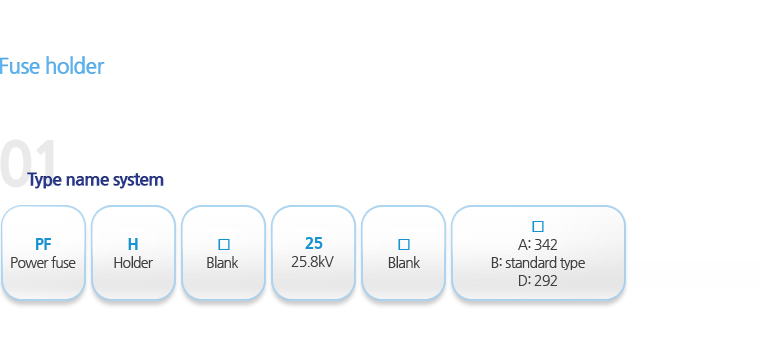

  • Fuse holder
High voltage current limiting fuse 정격/사양
notics information
Type name Rated voltage(kV) Rated current(A) Breaking current(kA) Minimum breaking current(A) Weight(kg) Base resistance(mΩ) Watthand(W) A(mm) B(0)
100% 50%
PF 25B 5K 25.8 5 40 18 2.6 1136 37 8 342 67
PF 25B 10K 10 35 579 84 17
PF 25B 16K 16 70 284 124 21
PF 25B 20K 20 96 190 121 21
PF 25B 25K 25 125 147 196 28
PF 25B 31.5K 31.5 145 3.3 81.3 205 22 77
PF 25B 40K 40 200 58.4 170 36
PF 25B 50K 50 282 41.5 193 29
PF 25B 63K 63 380 31.5 230 35
*PF 25B 40C 40 25 200 2.9 51 128 20 292 77
*PF 25B 50C 50 250 37 184 31
*PF 25B 63C 63 300 26 192 31

※The resistance value is ±10% of the base value.

notics information
Type name Rated voltage(kV) Rated current(A) Breaking current(kA) Minimum breaking current(A) Weight(kg) Base resistance(mΩ) Watthand(W) A(mm) B(0)
100% 50%
PF 25B 5 25.8 5 40 18 3.3 1136 37 8 442 67
PF 25B 10 10 35 579 80 16
PF 25B 16 16 70 284 112 21
PF 25B 20 20 96 190 115 21
PF 25B 25 25 125 147 160 26
PF 25B 31.5 31.5 145 4.3 81.3 143 25 77
PF 25B 40 40 200 58.4 158 26
PF 25B 50 50 282 41.5 211 31
PF 25B 63K 63 380 31.5 246 37

※The resistance value is ±10% of the base value.
